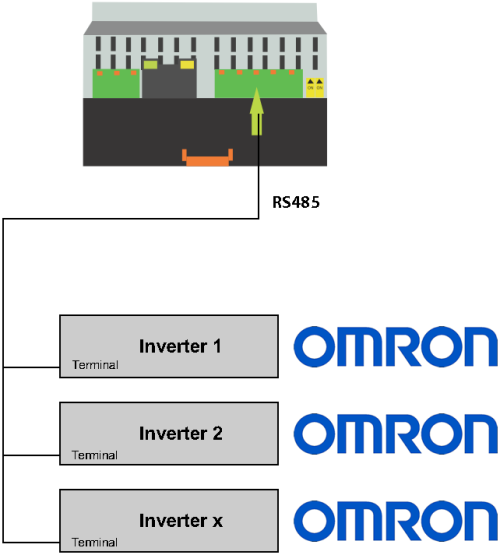

Connection Diagram
In case of the involvement of multiple inverters, connect the inverters each other this way:
| Inverter 1 | Inverter 2 |
|---|---|
| 6:GO | 6:GO |
| B+ | B+ |
| A- | A- |
On the last inverter is necessary to turn on or off the termination. Termination Enabled = terminals 9+10 connected.
