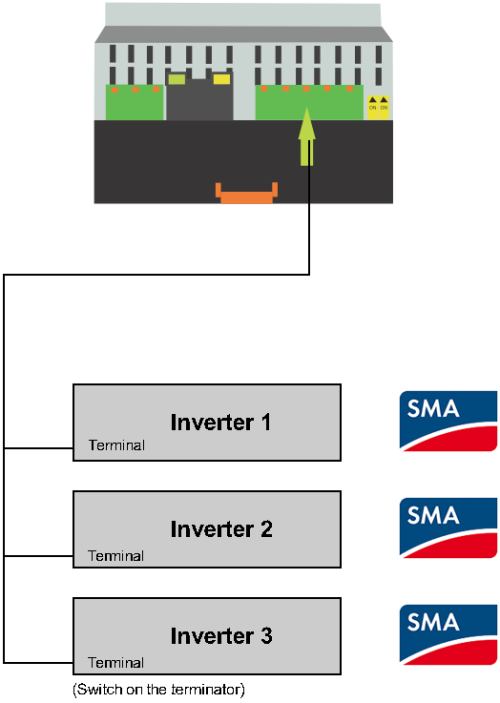

Connection Diagram




In case of the involvement of multiple inverters, connect the inverters with straight cable.

If needed fit jumper „A“ as terminator on the last inverter (near communication card).
