Connection Diagram

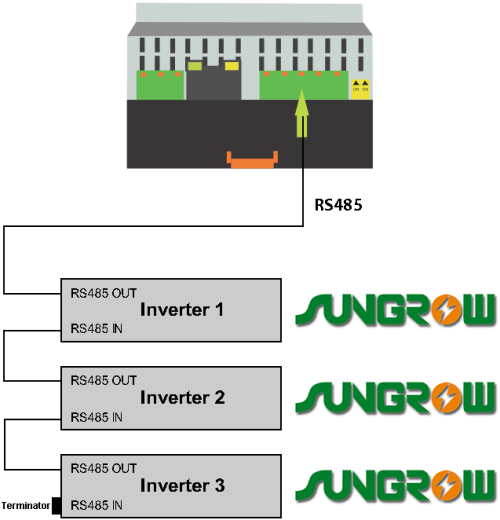

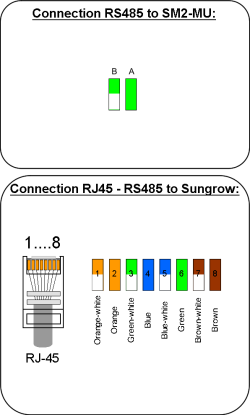

Connection Sungrow to SM2-MU





In case of the involvement of multiple inverters, connect the inverters with straight cable.

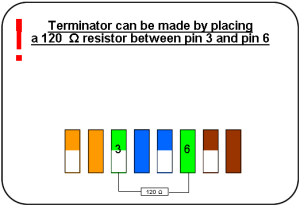

A terminator is connected at the last output of the inverter.

Configuration Notes
