Inverter Diagnostics

It shows inverter status in detail.

Data can be presented for daily, monthly or annual period.

button Previous shifts time period one day backward. With daily time period we can click on back arrow and it shows the previous day etc.
button Scope chooses longer time period. With daily time period we can click on button Scope and the graph shows monthly period. With monthly time period we can click on button Scope and the graph shows annual period.
button Next shifts time period one day forward. With daily time period we can click on forward arrow and it shows the next day etc.

• Since the first day of the time period
• Until the last day of the time period. If it is only one day time period the date in Since and Until boxes is the same.
• Today when you click here the current date is filled in automatically in the Since and Until boxes.
• Month (e.g. January, February…) when you click here the boxes Since the first day of that month and Until the last day of that month are filled in automatically.
• Year ( 2010, 2011…) when you click here the boxes Since the first day of that year and Until the last day of that year are filled in automatically.

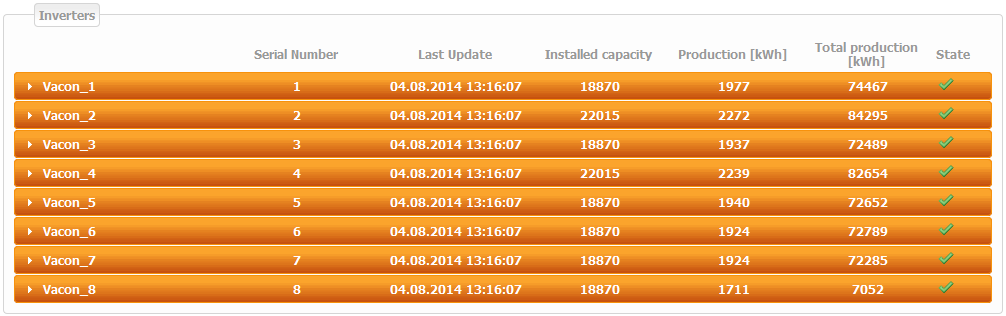

Names and features of connected inverters.

It comes from the Solar Monitor unit. The number is stipulated by its order among other inverters and stringboxes as detected by the unit.

Time when the last data from the Solar Monitor unit came.

You can stipulate this figure for inverters in the menu Administration / Overview / Unit's setting

Daily output of an inverter.

Inverter's total output since its launch.
Note: With inverters that don't record overall history, total output is calculated since the time when daily output is first recorded.

Inverter's daily production differs from other inverters' production less than 30%.
Inverter's daily production differs from other inverters' production more than 30%.

Note: It is necessary to have installed capacity of all inverters set properly in the menu Administration / Overview / Units' setting.

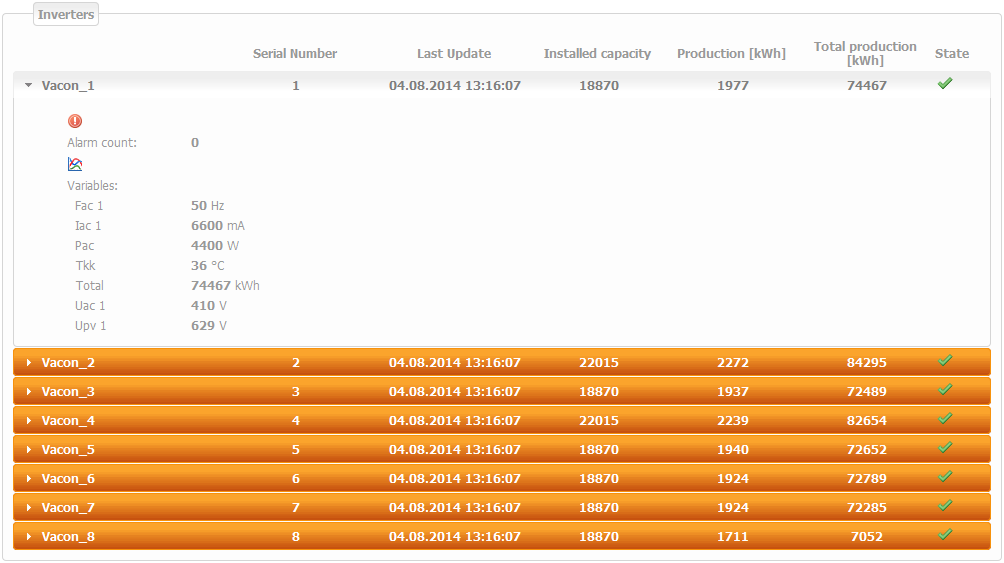

When you click on the inverter, a detailed summary of its output is displayed.
