Connection Diagram

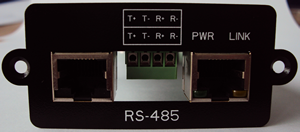

AEG communication card
Connection to SM2-MU via communication card terminals
| AEG | SM2-MU |
|---|---|
| T+ | A |
| T- | B |
| R+ | Y |
| R- | Z |

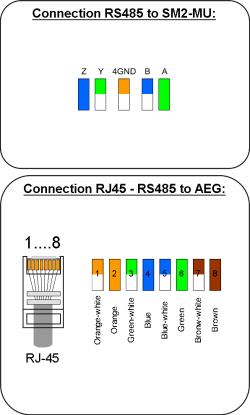

Connection to SM2-MU via RJ45 connector.
In case of the involvement of multiple inverters, connect the inverters with straight cable.
Set the termination on the last communication card (both DIP switches to same position)
