Power supply - Steca

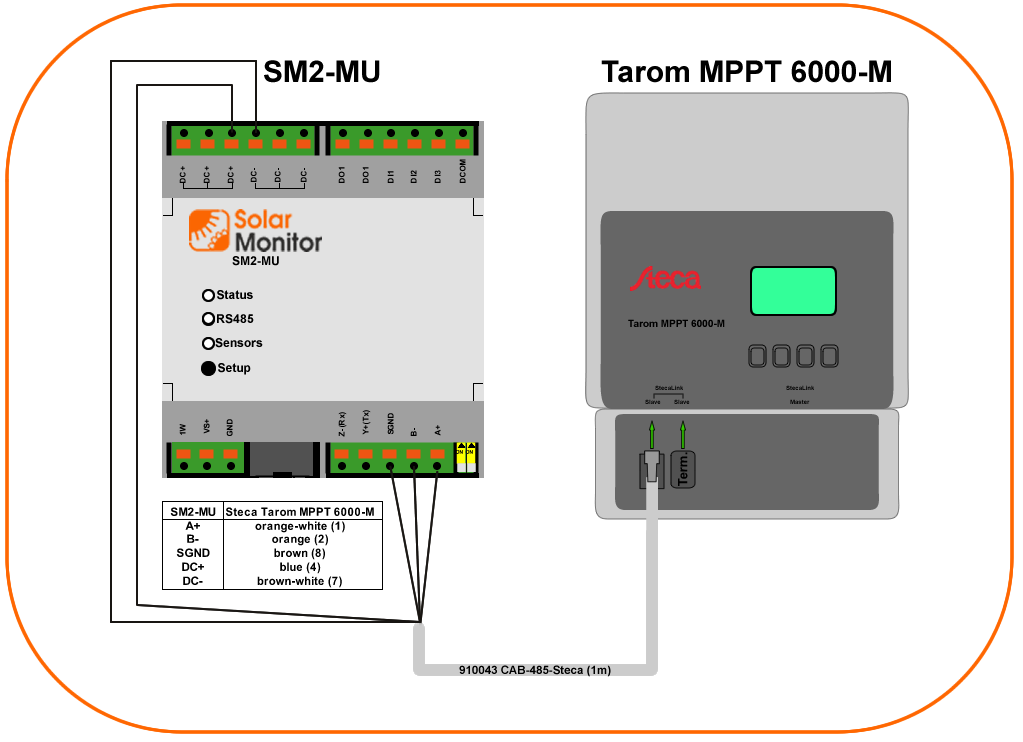

SM2-MU powered from Tarom MPPT 6000-M (no battery connected)
Not recommended if the SM2-GSM module is connected to the SM2-MU.
SM2-MU powered from battery 12 or 24 V which is connected to the Tarom MPPT 6000-S

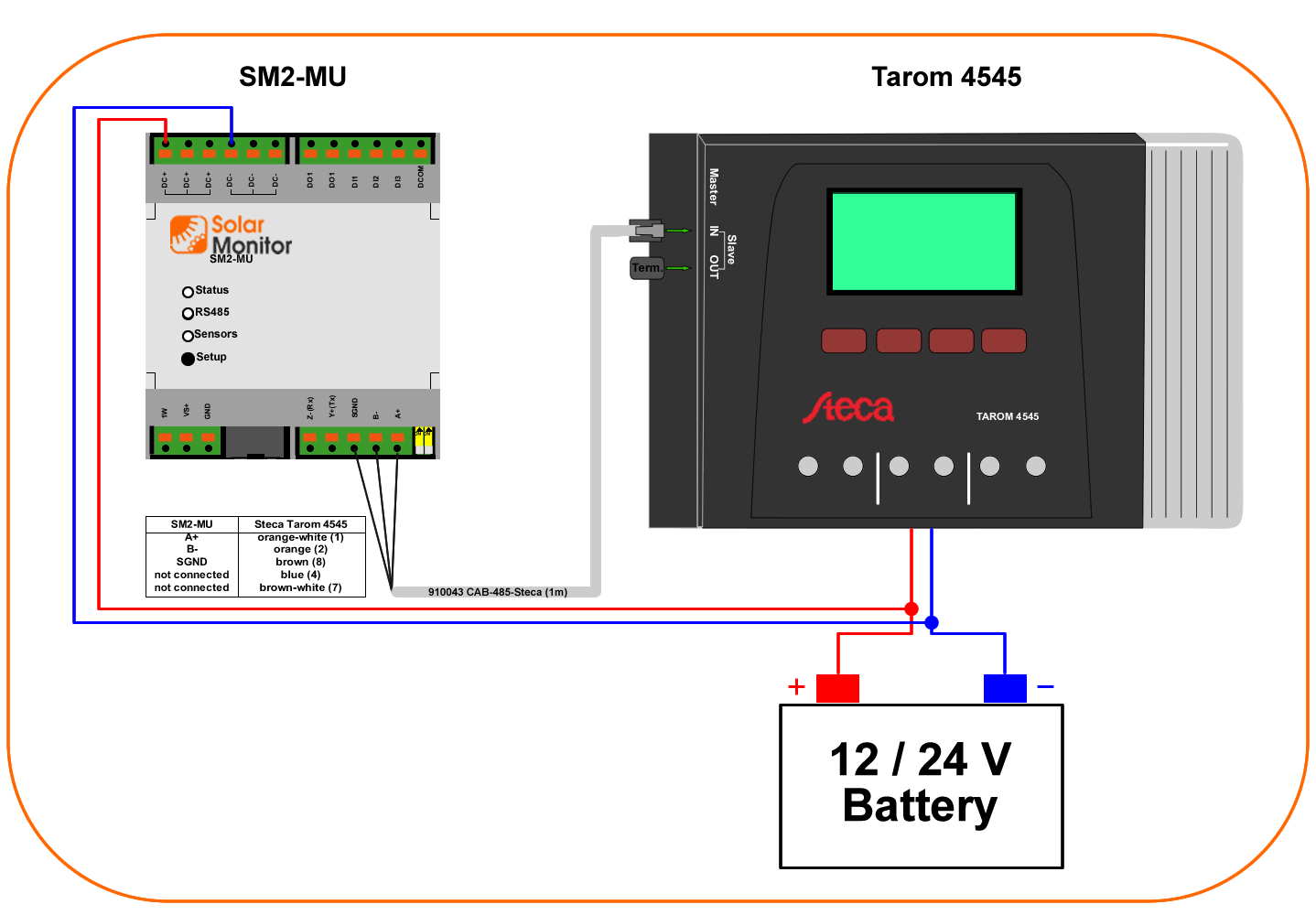

SM2-MU powered from battery 12 or 24 V which is connected to the Tarom 4545(-48)

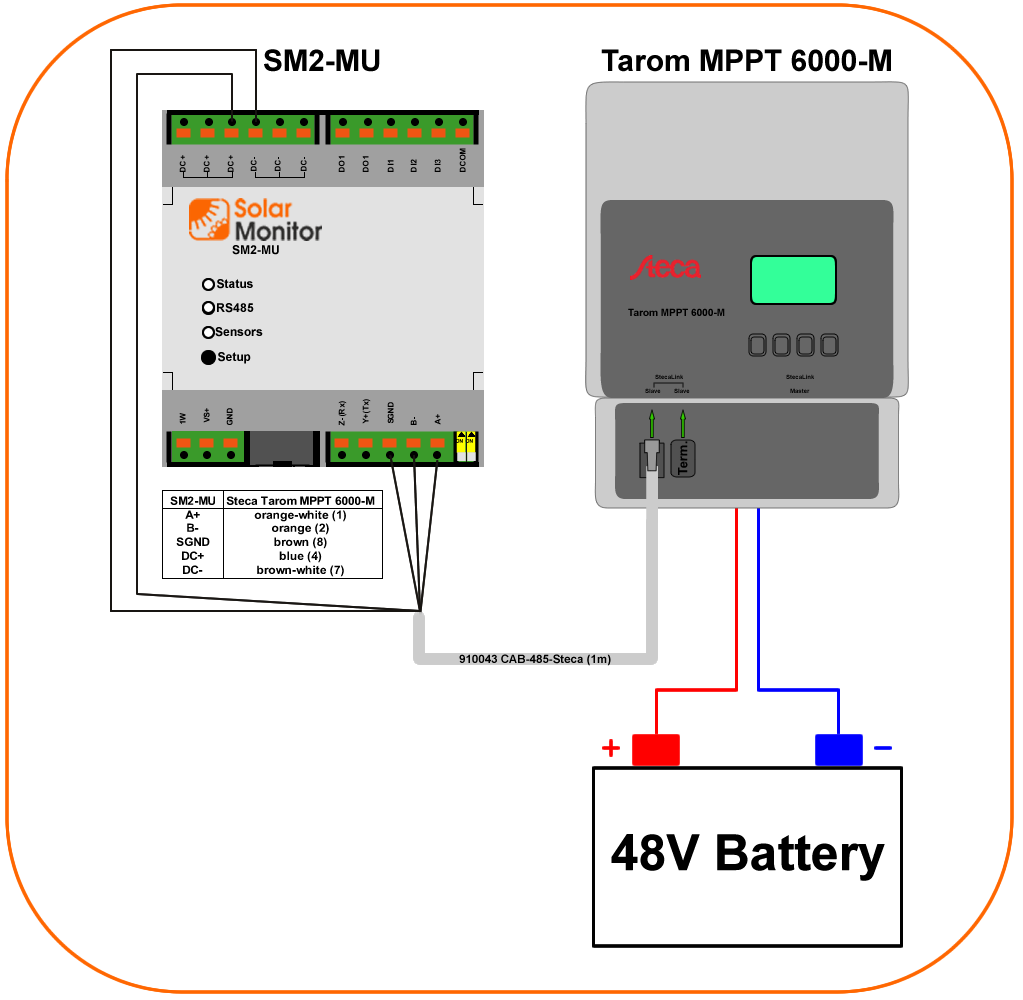

SM2-MU powered from Tarom MPPT 6000-M which is connected to the battery 48 V
Not recommended if the SM2-GSM module is connected to the SM2-MU.

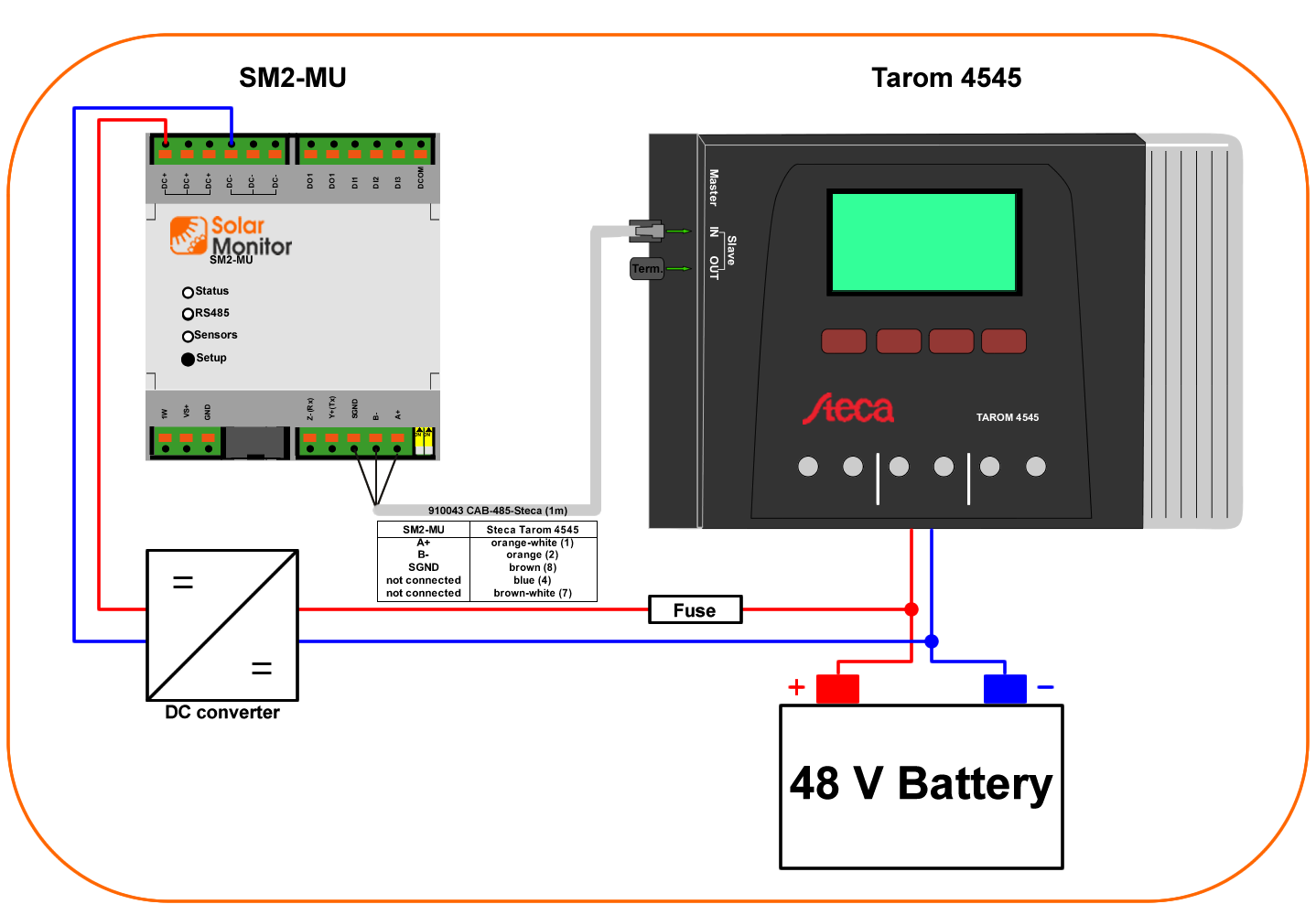

SM2-MU powered from battery 48 V which is connected to the Tarom 4545(-48)
Use a DC/DC converter for this case.
