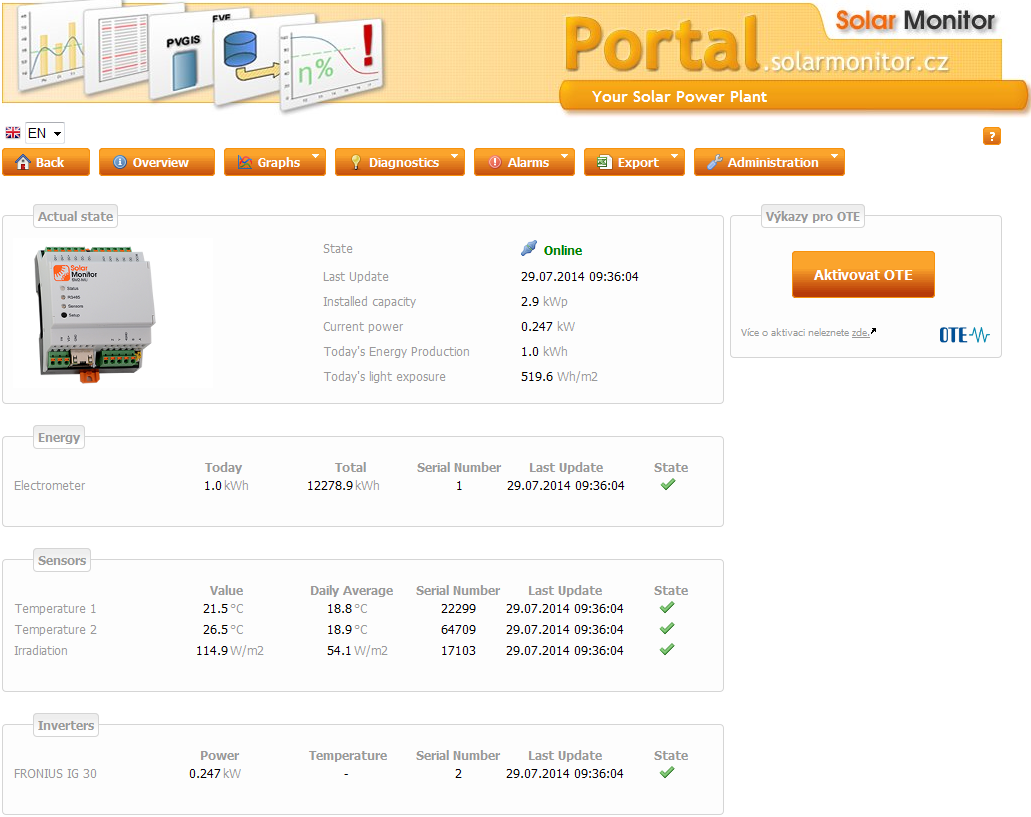

Overview

Page Overview of a PV plant shows information summary.

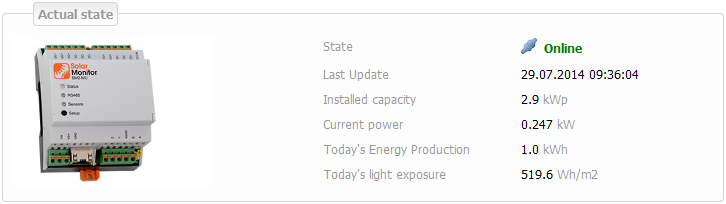

Current situation

A photo

A PV plant's photo can be changed in the menu Administration / Overview/ PV plant setting. If no photo has been inserted, Solar Monitor photo is displayed.

Status

Online: Solar Monitor is communicating
Offline: Solar Monitor isn't sending the data. The most likely cause is the internet connection failure.
License expiration: A notification for the user that full monitoring requires the license to be prolonged and paid for.
Service off: the web portal service for this PV plant has been switched off by the manager

Update

The last time when the data from the Solar Monitor unit came.

Installed output [kW]

The values of installed output come from the Solar Monitor unit itself. It isn't possible to change that value on the portal.

Current output [kW]

The latest value of the current output.This value was recorded when the latest data arrived. (see Value Update).

Today's output

The total of energy produced that day.

Today's irradiation

We can simply define this value as energy obtained from the sunshine in one day. It is calculated as the integral of solar irradiation ( in W/m3 units) per time interval of one day ( in hours). The total figure is in Wh/m3 units and represents the total energy obtained from the sun in one day.

Reports for OTE (electricity and gas market operator)


Further information on using Solar Monitor Portal to create reports for CS-OTE to be found here.

Energy

Information on output and consumption of a particular device (electro meter, inverter, energy consumption, gas consumption, water consumption). Each device is displayed separately.

Today

Today's output/consumption

Total

Total energy output/consumption

Serial number

Serial number identifies the manufacturer.

Update

Time when the latest data from the device arrived.

Status

Online: device is working
Offline: in case of values outage or wrong values

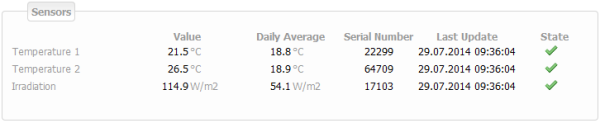

Sensors

Sensor's name

Sensor's name is recorded in the Solar Monitor unit where it can be changed.

Value

The most recent incoming value from the sensor. You can find the exact time in the Update box.

Daily average

Displayed values are the arithmetical average of 24 hours period.

Serial number

Sensor's serial number. It identifies the sensor unambiguously.

Update

The time of the latest sensor's value update.

Status

Online: Sensor is working
Offline: in case of value outage or wrong values

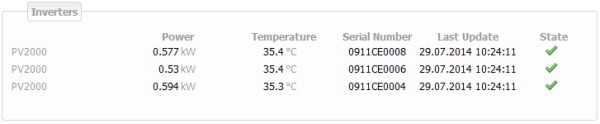

Inverters

Inverter's name

Name or type of inverter. It is loaded automatically when inverter is detected.

Output

The most recent incoming value of inverter's current output. You can find the exact time in the Update box.

Serial number

Serial number identifies the manufacturer unambiguously.

Update

Time of the most recent current output update.

Status

Online: Inverter communicates and produces energy
Offline: Indicates inverter's error. It is displayed when there is no communication or if irradiation intensity is higher than 100W/m3 and the inverter isn't producing energy.

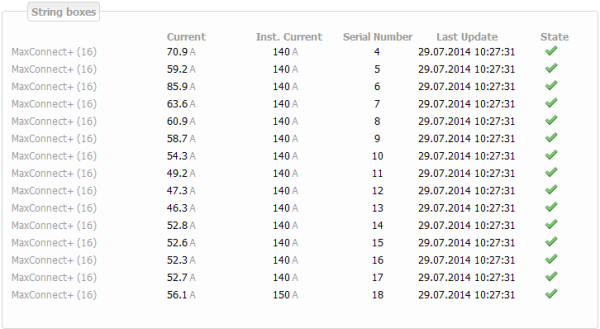

Stringboxes

Stringbox name

Name or the type of the stringbox. It is loaded automatically when the stringbox is detected.

Current

The most recent incoming value of stringbox's current output. You can find the exact time in the Update box.

Installed current

Installed current value of a particular strinbox.

Serial number

Serial number. It identifies the manufacturer unambiguously.

Update

The time of the latest current output value update.

Status

Online: Stringbox communicates and produces energy
Offline: Indicates stringbox's error. It is displayed when there is no communication or if the stringbox isn't producing energy.
