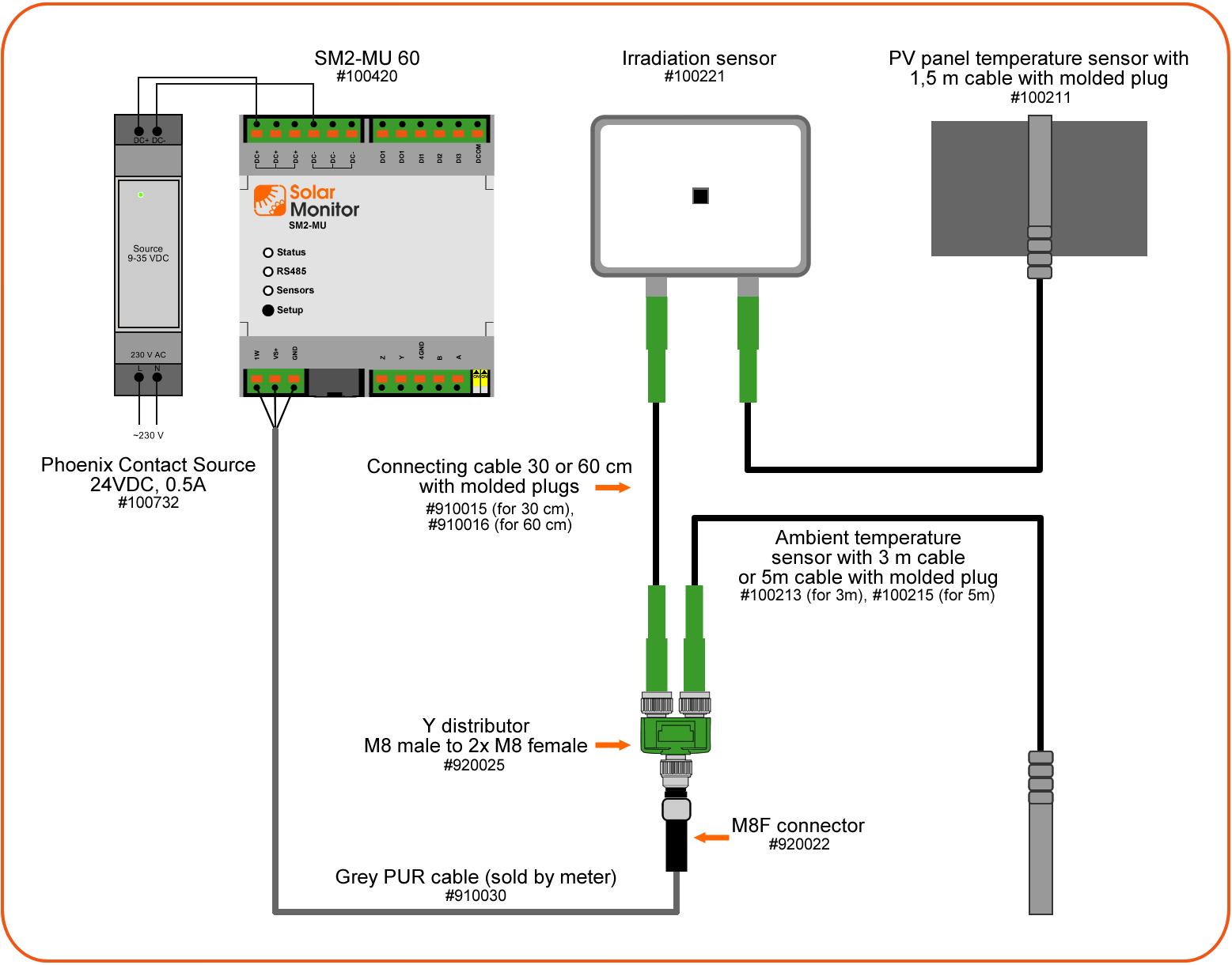

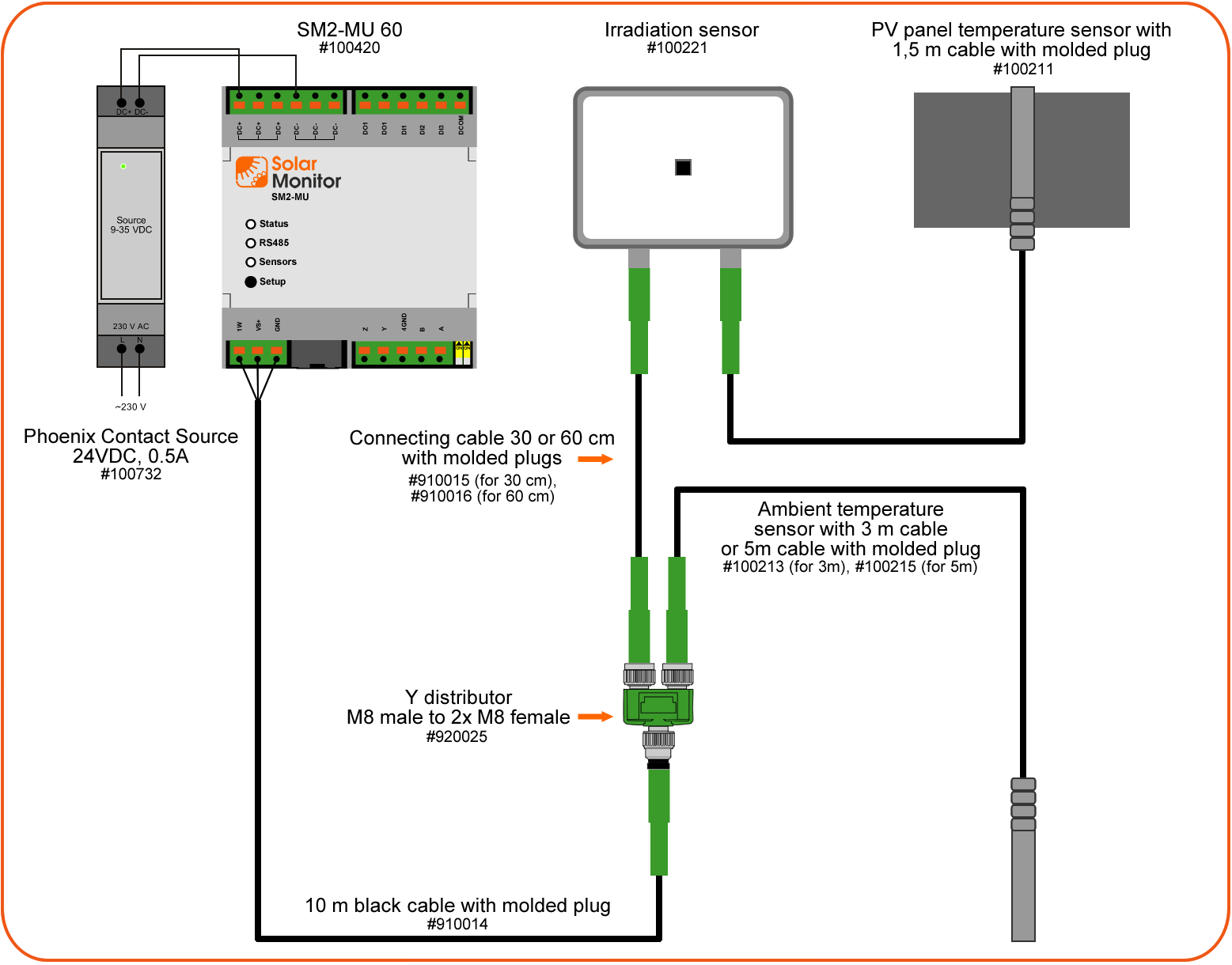

Examples with sensors connection diagrams

In various situations it is sometimes necessary to modify the wiring to each sensor.

Here are just a few possible examples that may occur. If you don't find yours, contact us. We will find a suitable solution for you.
