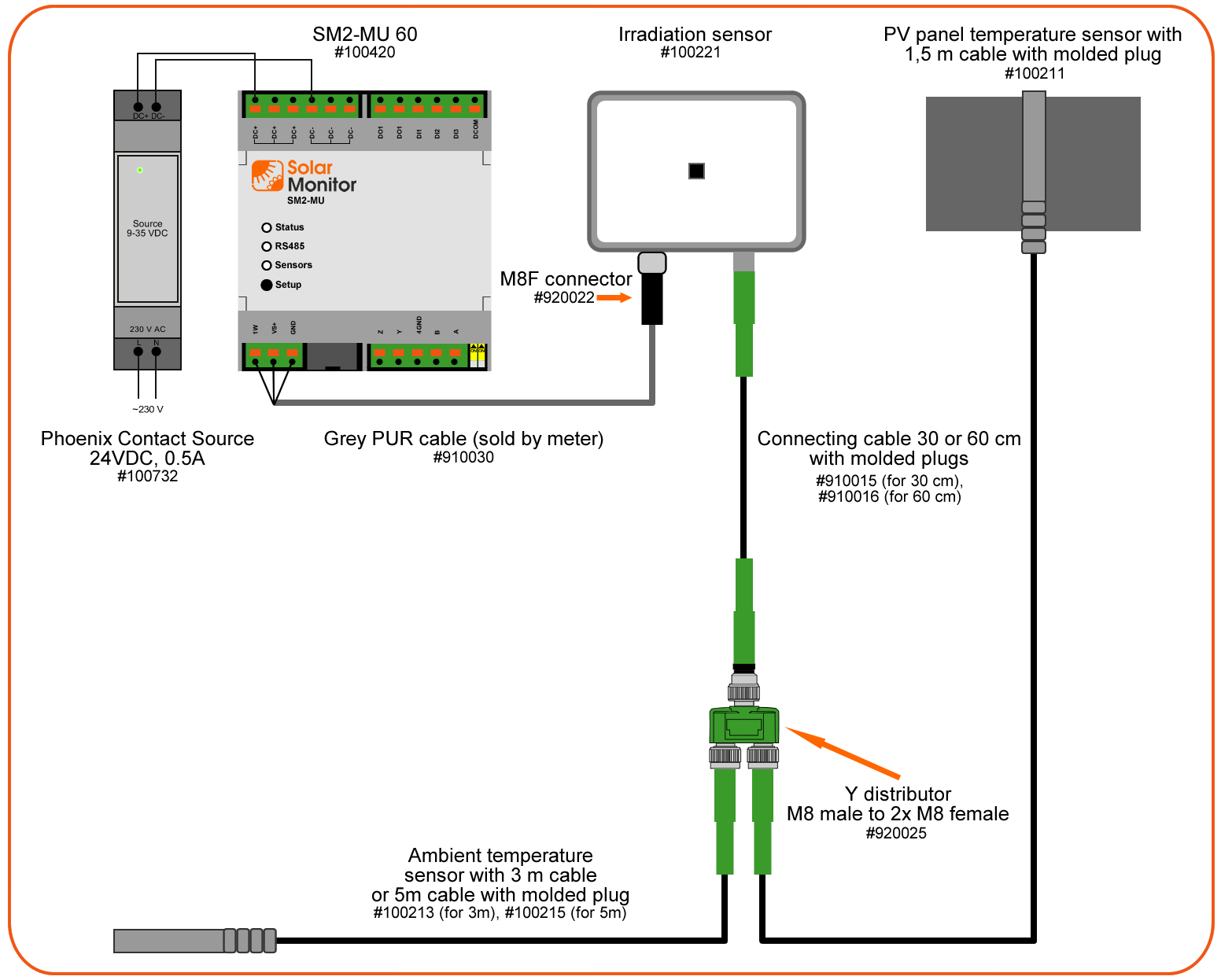

2. The ambient temperature sensor measures the location of the solar panels


The irradiance sensor is connected to the Solar Monitor with a PUR cable with a molded plug at a maximum length of 10 m.

The irradiance sensor is connected to the Solar Monitor using an outdoor PUR cable (length as required) with an M8F connector.
