5. Connecting Power Supply

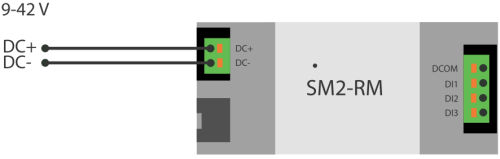

Connect the power supply (9-42V) to SM2-RM unit as shown in the following picture.
