3. LAN Network

Connect the unit into LAN network (to the switch, PC) with straight or cross-over UTP cable.

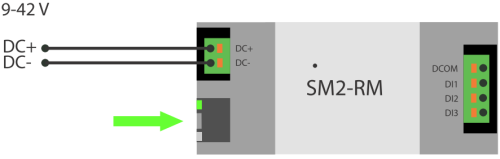

Connect the UTP cable into RJ45 terminal of SM2-RM. The device is connected if a green light “LINK” at the RJ45 terminal is on.
