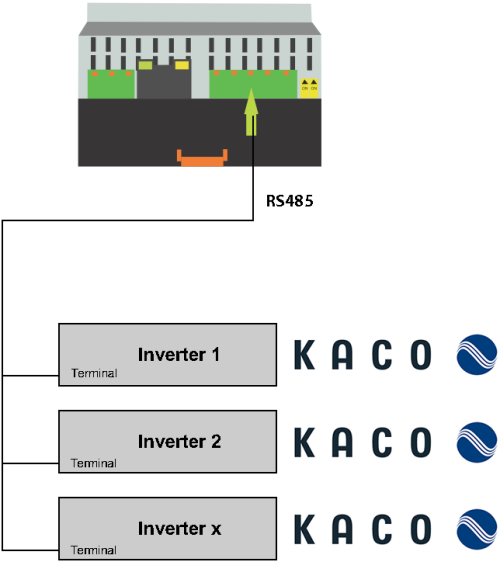

Connection Diagram

In case of the involvement of multiple inverters, connect the inverters each other this way:

Inverter 1	Inverter 2
A	A
B	B

On the last inverter is necessary to turn on or off the termination „TERM“ near the RS485 terminal. Termination switch on = DIP1:ON, DIP2:OFF
Termination switch off = DIP1:OFF, DIP2:OFF

Configuration Notes
