SNMP Version 1 - Example of use


Go to Solar Monitor web interface, menu General Settings/SNMP, select version SNMP 1.
Port number stays 161.
Click on name of selected MIB, e.g. studer.mib and save the file in your PC.
Community List and Access settings can stay as they were.


Download MIB Browser, e.g. iReasoning MIB Browser and install it.
Open iReasoning MIB Browser, click on tab File and then Load Mibs.
In your PC find downloaded file studer.mib and select it.

It will appear among MIB being used.

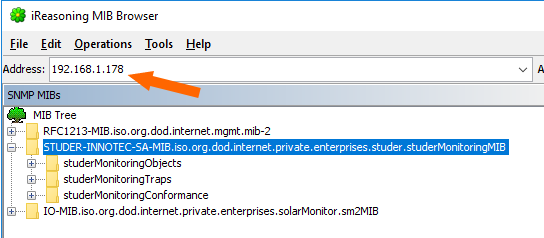

Fill in Address with Solar Monitor IP address.
Click on Advanced <font 12.8px/arial;;#000000;;#ffffff>button.</font>

Check that UDP port number (standard 161) and current SNMP version are compatible with Solar Monitor settings.
Fill in Read Community and Write Community as specified in Solar Monitor settings ( public, private <font 12.8px/arial;;#000000;;#ffffff>in default setting</font> ). Click on OK.

In MIB tree database select variable you want to display and use to mouse left button control to click on it. Variable's description and OID identifier appears in lower left corner.
Click on it with mouse right button control and select Get Next.
In the right part of Browser there will be result table.

If you want to receive Traps from device, go to Solar Monitor, menu Settings/SNMP and set up Traps table.
Select community, fill in IP Address with IP address of PC with iReasoning MIB Browser, port 162 at trap server side.
In iReasoning MIB Browser click on Tools, then Trap Receiver.
There are traps received from Solar Monitor. Click on a trap to see more details.
