SM2-RM Module Parameters
| LAN Network | |
|---|---|
| Interface | RJ45 (100BASE-T)-100Mbit/s, compatible with network 10/100/1000 Mbit/s |
| Protocoles | HTTP, SOAP, DNS, UDP Setup, Telnet, ARP, ICMP, SMTP |
| Specifications | |
| Binary inputs | optoelektronically insulated, DI1, DI2, DI3 |
| Terminals | max diameter 1.5 mm² |
| Installation | DIN rail |
| Mechanical features | |

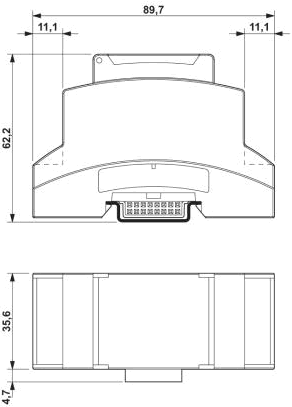

| Dimensions | 36 x 89.7 x 62.2 mm |
| Operating temperature | -25 °C to + 60 °C |
| Diode | Status |
| Elektrical parameters | |
| DI1, DI2, DI3 | 8-80 V |
| Power supply SM2-RM | 9-35 V DC, typ. 0,72 W |
| Power supply SM2-RM-GSM | 9-35 V DC, typ. 1,1 W |
| SM2-RM-GSM | |
| GPRS modul | |
| Antenna | SMA connector |
| 4 quad-band | 850/900/1800/1900MHz |
