3. Other possibilities of sensors connection

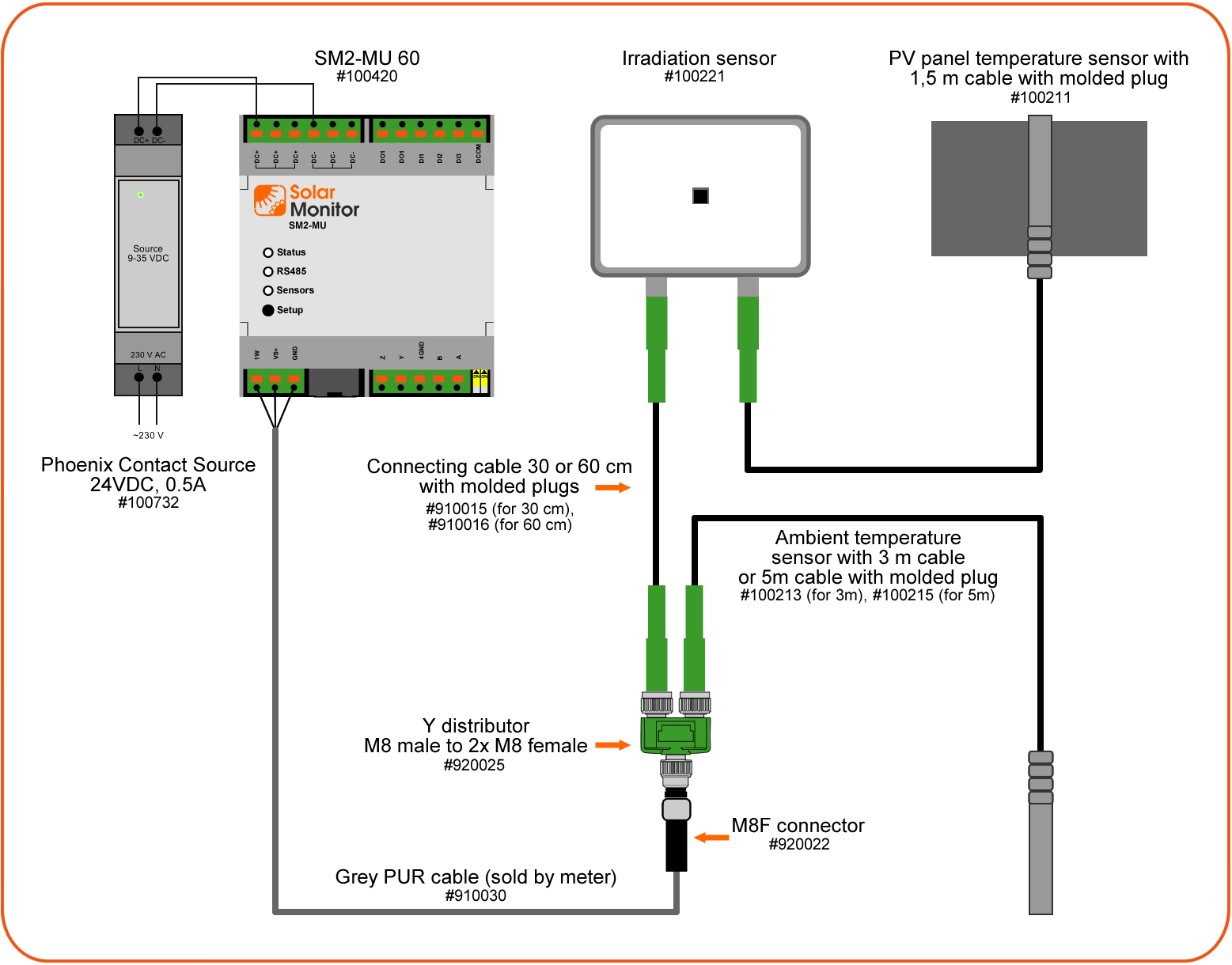

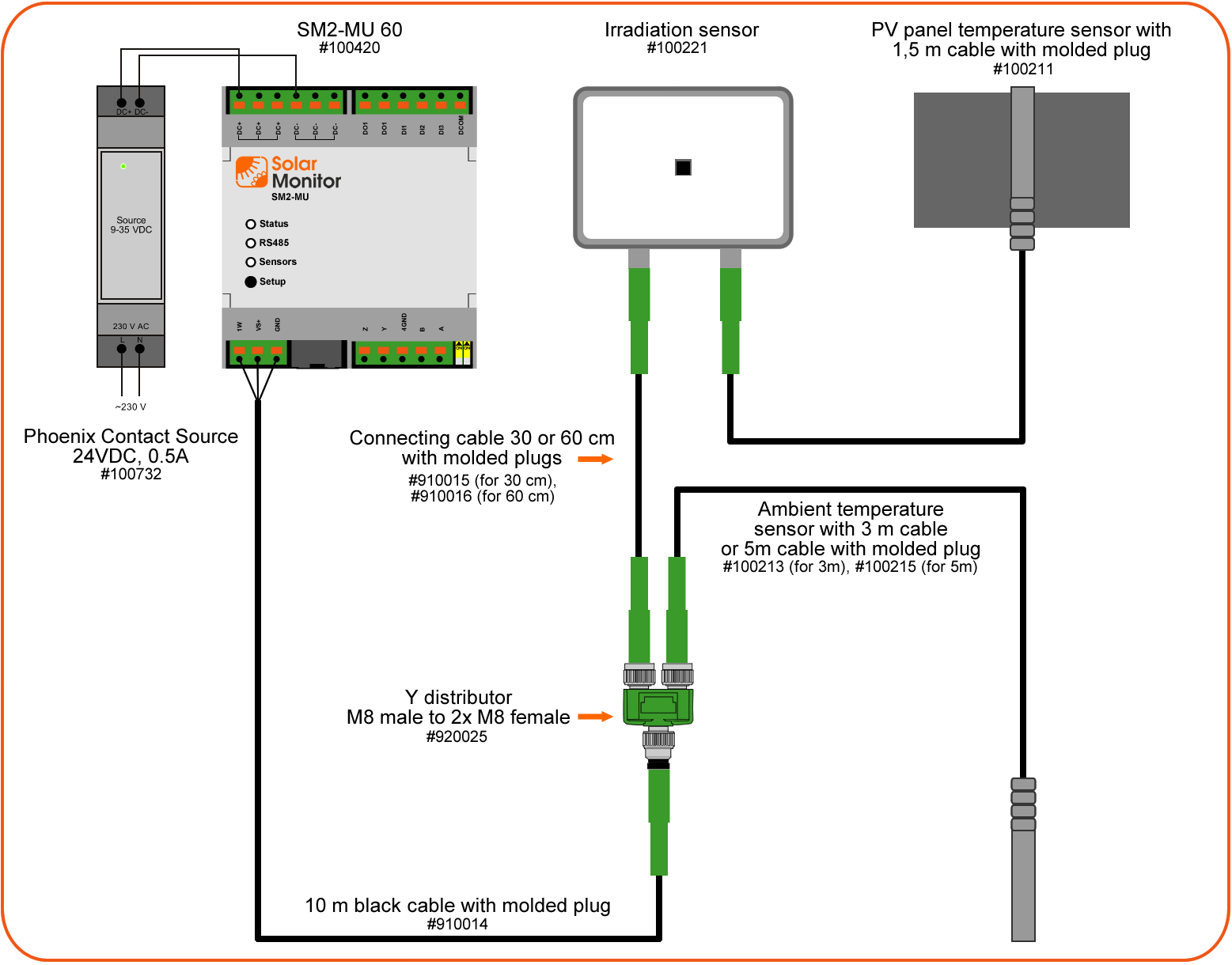

There are many ways of wiring the sensors. The next 2 pictures show the wiring for other 2 situations. For example, you need to place the ambient temperature sensor in a different location than at the solar panels or at the place where the Solar Monitor is installed.
