4. Připojení digitálních vstupů

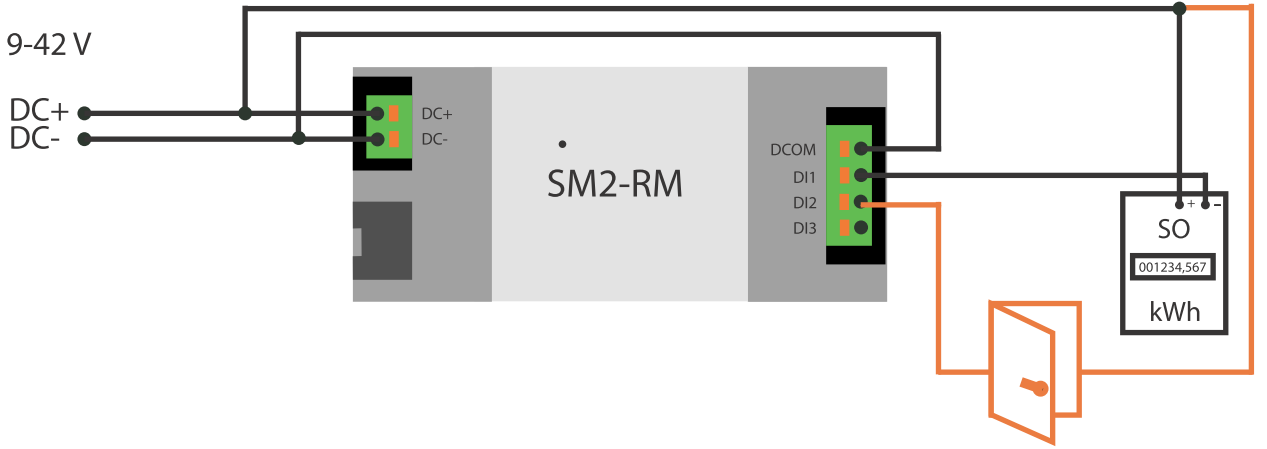

SM2-RM has three digital inputs DI available.

Connect DC- supply signal to DCOM terminal. In order to switch the input on, voltage between terminals DCOM and DI (DI1-DI3) must be higher than 8V.
