9. Inputs Configuration

In previous chapter we have dealt with setting up pulses in the electro meter. In case there is only electro meter connected to your SM2-RM device, go to Next >>






Inputs configuration is carried out in the menu System Setup/Inputs and Measurement (same menu as Pulse Setup)

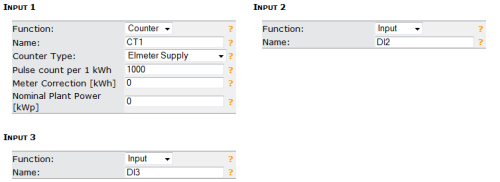

SM2-RM device has this default setting:



In case you have other devices except of your electro meter connected to the inputs, info on their configuration to be found here.

Next >>

<< Previous
