Strinbox Diagnostics

It shows stringbox status in detail.

Time period of data shown

Data can be presented for daily, monthly or annual period.

button Previous shifts time period one day backward. With daily time period we can click on back arrow and it shows the previous day etc.
button Scope chooses longer time period. With daily time period we can click on button Scope and the graph shows monthly period. With monthly time period we can click on button Scope and the graph shows annual period.
button Next shifts time period one day forward. With daily time period we can click on forward arrow and it shows the next day etc.

  • Since the first day of the time period
  • Until the last day of the time period. If it is only one day time period the date in Since and Until boxes is the same.
  • Today when you click here the current date is filled in automatically in the Since and Until boxes.
  • Month (e.g. January, February…) when you click here the boxes Since the first day of that month and Until the last day of that month are filled in automatically.
  • Year ( 2010, 2011…) when you click here the boxes Since the first day of that year and Until the last day of that year are filled in automatically.

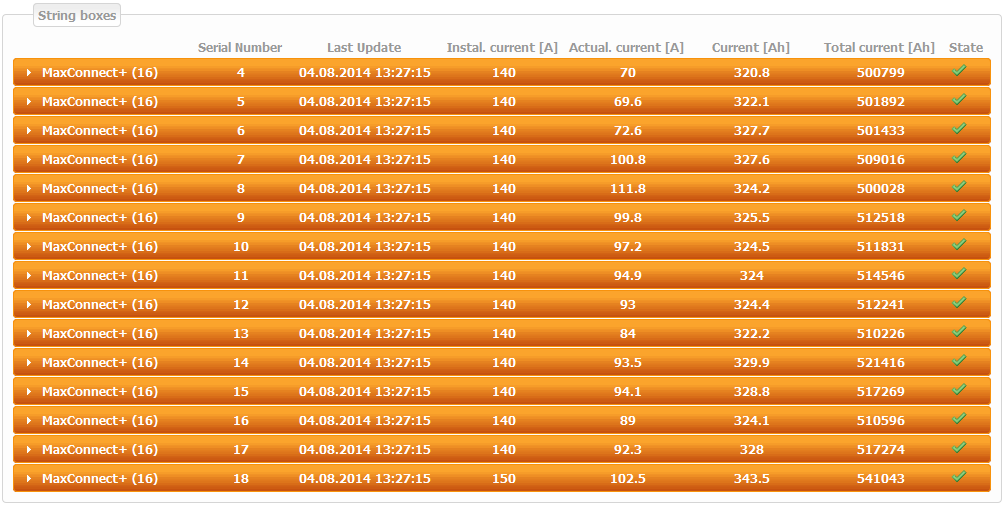

Stringboxes

Names and features of connected stringboxes.

Serial number

It comes from the Solar Monitor unit. The number is stipulated by its order among other inverters and stringboxes as detected by the unit.

Update

Time when the last data from the Solar Monitor unit came.

Installed current [A]

Solar Monitor unit gets this figure from the strings.

Present current [A]

The latest incoming value of the present current.

Current [Ah]

Daily output.

Total current [Ah]

Total output since the launch.

Status

Difference in daily production of all strings is less than 30%.
Difference in daily production of all strings is more than 30%.

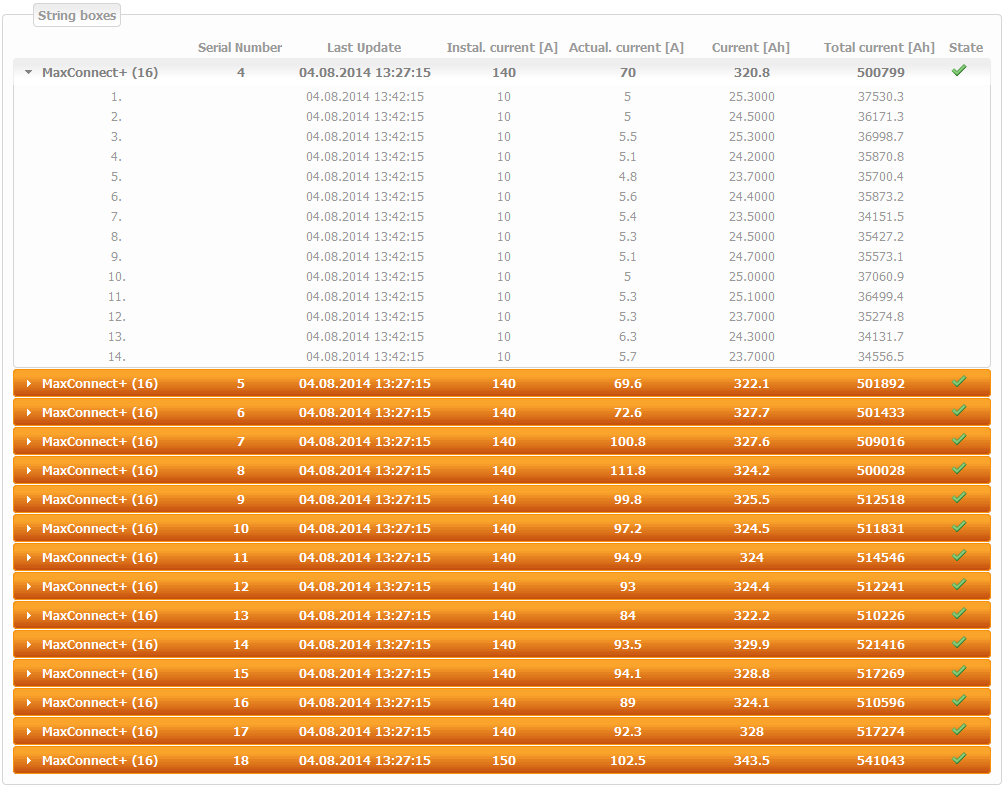

When you click here you can see a detailed summary of each string's output.
