Communication check

It shows recorded alarms of checked communication with electrometer.

Time period of alarms

Recorded alarms can be presented for daily, monthly or annual period. Time period stipulates the day (days) of presented alarms.

button Previous shifts time period one day backward. With daily time period we can click on back arrow and it shows the previous day etc.
button Scope chooses longer time period. With daily time period we can click on button Scope and the graph shows monthly period. With monthly time period we can click on button Scope and the graph shows annual period.
button Next shifts time period one day forward. With daily time period we can click on forward arrow and it shows the next day etc.

  • Since the first day of the time period
  • Until the last day of the time period. If it is only one day time period the date in Since and Until boxes is the same.
  • Today when you click here the current date is filled in automatically in the Since and Until boxes.
  • Month (e.g. January, February…) when you click here the boxes Since the first day of that month and Until the last day of that month are filled in automatically.
  • Year ( 2010, 2011…) when you click here the boxes Since the first day of that year and Until the last day of that year are filled in automatically.

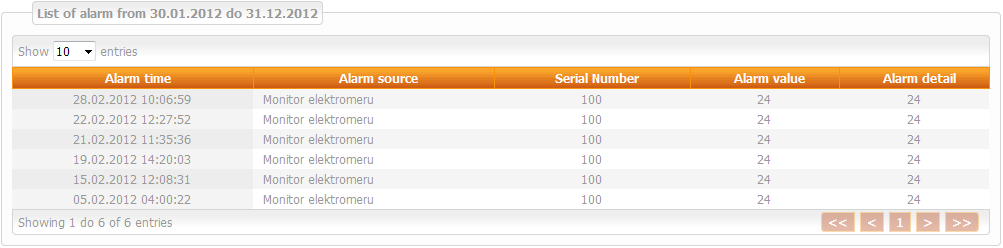

The list of alarms


Time of alarm

Time when alarm appeared.

Source of alarm

Electrometer

Serial number

Serial number identifies manufacturer.

Alarm's values

Time period of the failure.

Alarm's detail

Set delay (in seconds) from the time when alarm appeared until alarm is declared (it is set in Solar Monitor unit)
