Energy

It shows total energy production of a PV plant or a particular stringbox.

Time period of data selected

Data can be presented in daily, monthly or annual time period. Daily graph shows energy production for every hour, monthly graph shows energy production for each day and annual graph shows energy production for each month.

button Previous shifts time period one day backward. With daily time period we can click on back arrow and it shows the previous day etc.
button Scope chooses longer time period. With daily time period we can click on button Scope and the graph shows monthly period. With monthly time period we can click on button Scope and the graph shows annual period.
button Next shifts time period one day forward. With daily time period we can click on forward arrow and it shows the next day etc.

  • Since the first day of the time period
  • Until the last day of the time period. If it is only one day time period the date in Since and Until boxes is the same.
  • Today when you click here the current date is filled in automatically in the Since and Until boxes.
  • Month (e.g. January, February…) when you click here the boxes Since the first day of that month and Until the last day of that month are filled in automatically.
  • Year ( 2010, 2011…) when you click here the boxes Since the first day of that year and Until the last day of that year are filled in automatically.

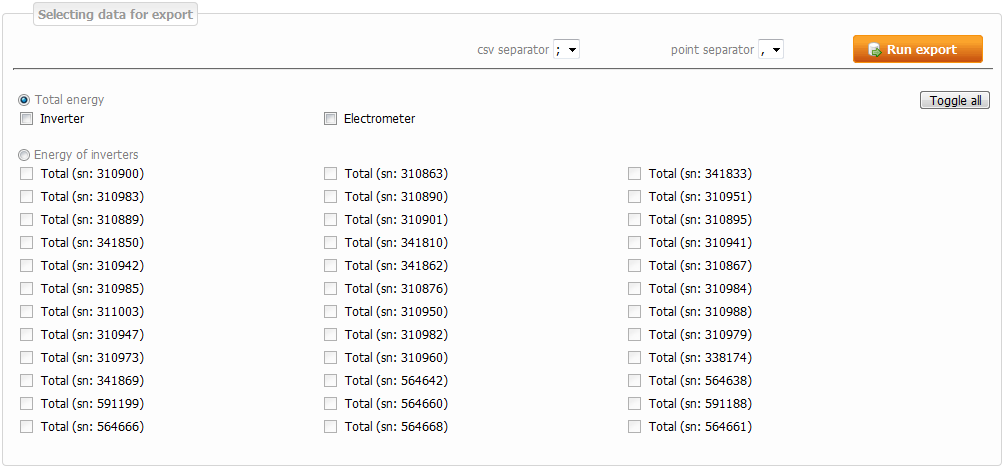

Export of data into CSV format


Export enables further work with data. Exported file is ready to be used in MS Excel application which offers comfortable work with files in CSV format. You can use the exported data for calculations or creating graphs. You can choose CSV separator and decimal separator for exporting data into CSV file.

Total energy

Select a Solar Monitor unit (units) for exporting total energy production data.

Inverters' energy

For exporting energy production data of a particular inverter ( inverters).


Click here to generate CSV file.
